Lesson details
Key learning points
- In this lesson, students will find the area of compound shapes by dividing the shape up into simpler more easily recognisable shapes and finding the sum of their parts.
Licence
This content is made available by Oak National Academy Limited and its partners and licensed under Oak’s terms & conditions (Collection 1), except where otherwise stated.
Loading...
3 Questions
Q1.

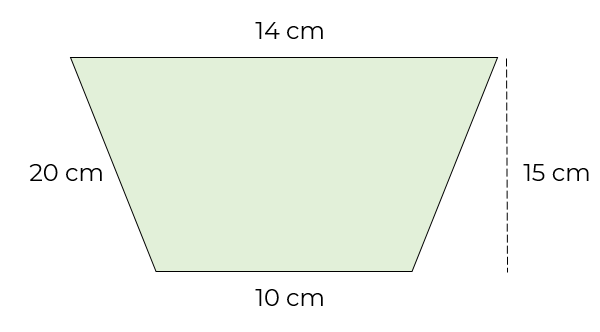

Work out the area of the trapezium.
110 cm²
55 cm²
80 cm²
Q2.

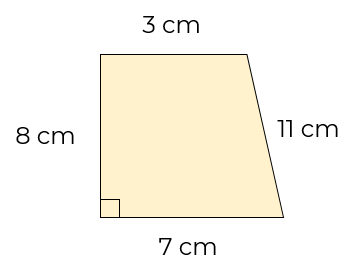

Work out the area of the trapezium.
240 cm²
360 cm²
480 cm²
Q3.

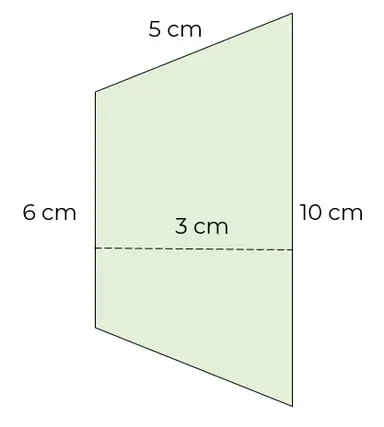

Which of the following dimensions of a triangle have the same area as the trapezium in the diagram?
Base 12 cm and perpendicular height 2 cm
Base of 8 cm and a sloped side of 6 cm
Perpendicular height of 6 cm and base of 4 cm
3 Questions
Q1.

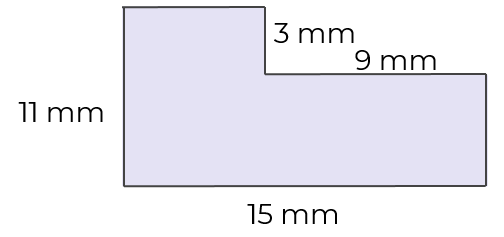

Work out the area of the compound shape.
165 cm²
27 cm²
Q2.

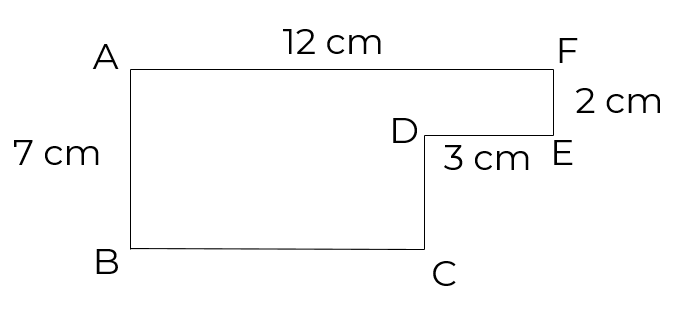

Work out the area of the compound shape.
36 cm²
84 cm²
Q3.

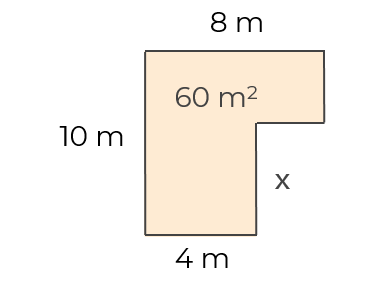

The area of the compound shape is shown. Find the length of the side labelled x.
2 m
4 m
